PRODUCTS

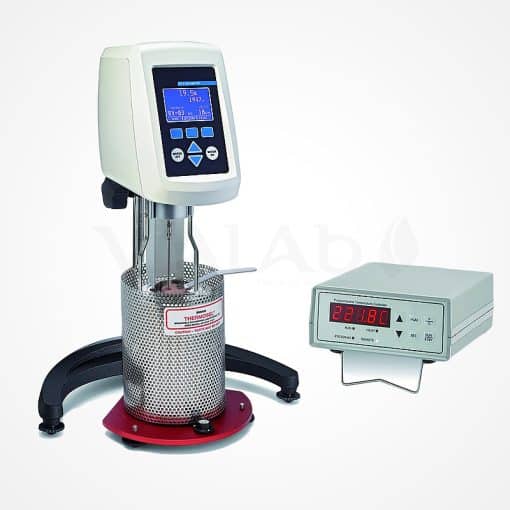

BROOKFIELD VISCOMETER | RVDV1M
The DV1M digital viscometer offers all the functionality of the DV-E model, with additional functions:
- RS-232 interface for PC (optional Wingather software).
- Waterproof touch keyboard
- Analog output for plotting measurement results
- Programmable stop mode based on time or a given speed
Technical specifications
- Viscosity range: 100 cP to 13 million cP (with optional mobile # 1)
- Large screen with direct display: viscosity | speed | percentage of torque
- Continuous viscosity measurement
- 18 rotation speeds
- Stop function: time and torque
- Foot and support allowing the viscometer to be raised and lowered at the press of a button,
- Ideal for intensive use
- USB output for Wingather SQ software or optional Dymo printer
- Optional: temperature sensor and Wingather SQ software
- Supplied in a rigid carrying case with standard mobile kit
- NIST support and certificate
F026.137.0003
Accessories & Options

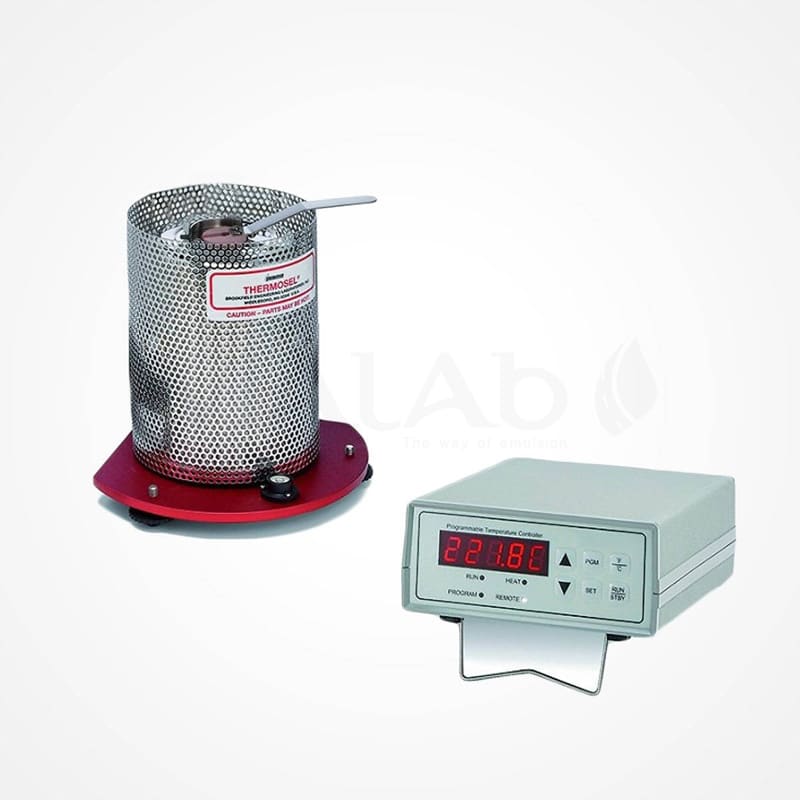

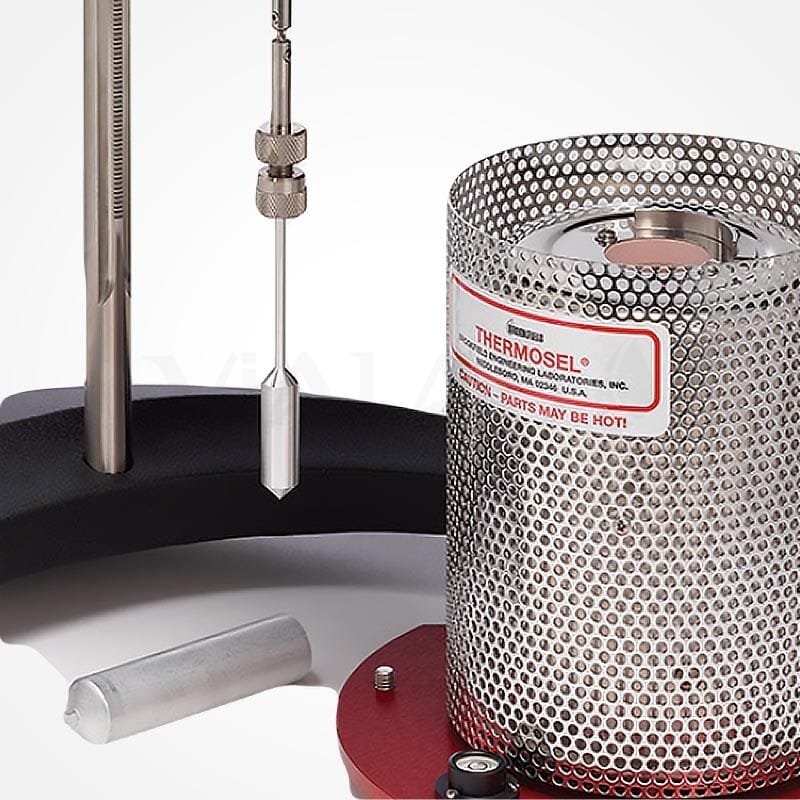

THERMOSEL PROGRAMMABLE
Specifications
- Heating system for viscosity measurements up to 300 ° C
- Adaptable to all Brookfield viscometers with classic geometry
- Absolute viscosity measurement (known shear rate).
- Low volume of product required (7 to 13 ml).
- Delivered in a secure box with insulating capsule
- Temperature controller with temperature probe
- Stainless steel measuring chamber + 5 disposable chambers
- Spindle Brookfield SC4-18
- Additional disposable aluminum chambers to be ordered separately
F026.137.0010

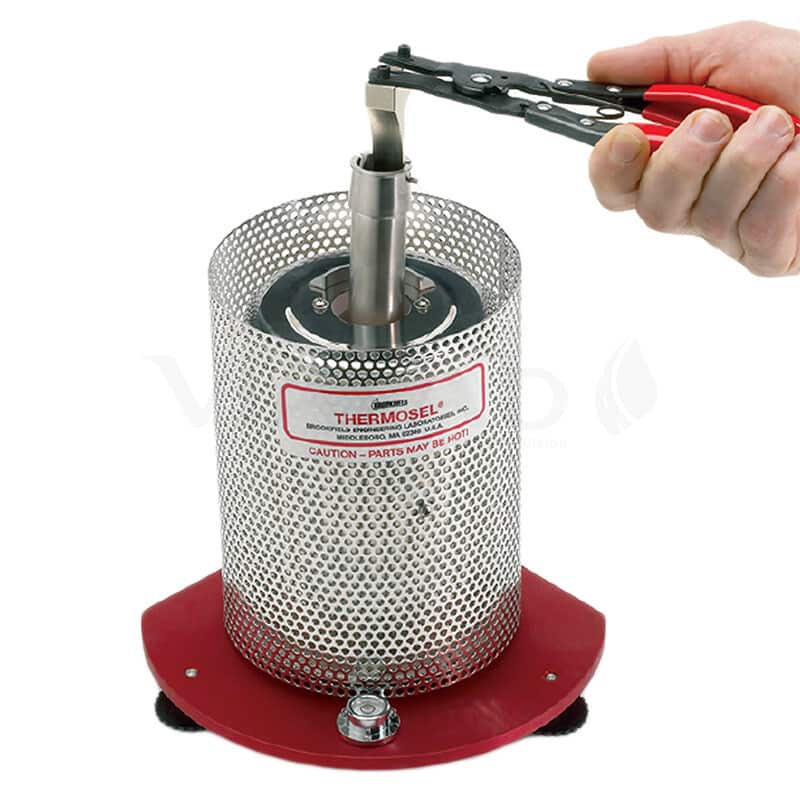

TEST CHAMBER | THERMOSEL
Specifications
- Disposable test chamber
- Aluminum
- Suitable for Thermosel Brookfiel
- Sold by 100
F026.137.0110

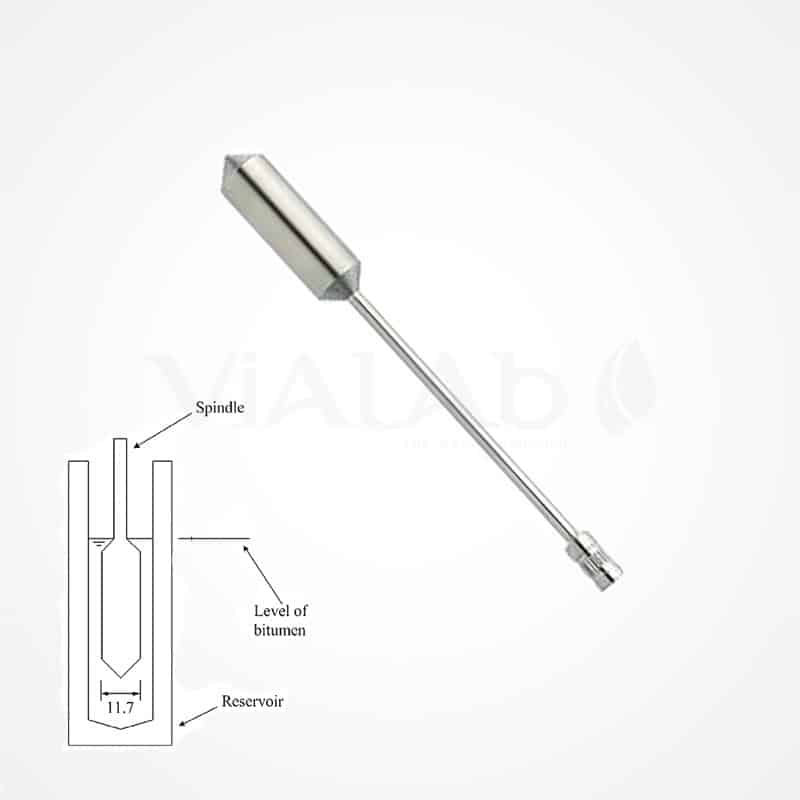

BROOKFIELD SPINDLE | SC4-18
Specifications
- Spindle compatible and included by default in the Thermosel 106 heating module
- Suitable for measuring the dynamic viscosity of bitumen emulsions.
- Sample volume: 8 ml
- Viscosity range with DV2 RV: 16 to 160 cP (mPa.s)
- Viscosity range with DV1 RV: 32 to 320 cP (mPa.s)
F026.137.0018
BROOKFIELD SPINDLE | SC4-21
Specifications
- Spindle compatible with the Thermosel 106 heating module
- Suitable for dynamic viscosity measurement of fluidized, fluxed, pure and modified bitumens.
- Sample volume: 8 ml
- Viscosity range: 25 to 500,000 cP (mPas.s)
F026.137.0021
BROOKFIELD SPINDLE | SC4-27
Specifications
- Spindle compatible with the Thermosel 106 heating module
- Suitable for dynamic viscosity measurement of fluidized, fluxed, pure and modified bitumens.
- Sample volume: 10.5 ml
- Viscosity range with DV2 RV: 125 to 2,500,000 cP (mPa.s)
- Viscosity range with DV1 RV: 250 to 830,000 cP (mPa.s)
F026.137.0027
